2022 Latest Design Smt Electronics Pick And Place Machine – Odd Form 4 Placement Head Plug-in Machine with 50mm Component Width for SMT Assembly – Xinling Detail:

Model SYC4A
PCB Specifications

Placement heads 4 pcs
PCB format L50×W50mm to L450×W450mm
PCB thickness 0.3×4.5mm2
PCB weight Approx 5 kgs
Mounting Accuracy stick insert speed: 0.45-3.0s
stick accuracy:+/-0.05mm
Camera sets 5 sets
Roof structure Asynchronous – Synchronous
Components height 25-50mm
Components width 50mm
Tracks stainless steel chain
PCB track fixed Jack-up clamping
Track section 3 sections
Track adjustment mannual / automatic
Track height 900+/-30mm/750+/-30mm
Substrate through height 30-50mm/20mm
Equipment

Power Supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air pressure 0.6MPa
Machine Dimension L1,300 x W1,550 x H1,600mm (Excluding protrusions)
Weight Approx 2000kgs


Product detail pictures:

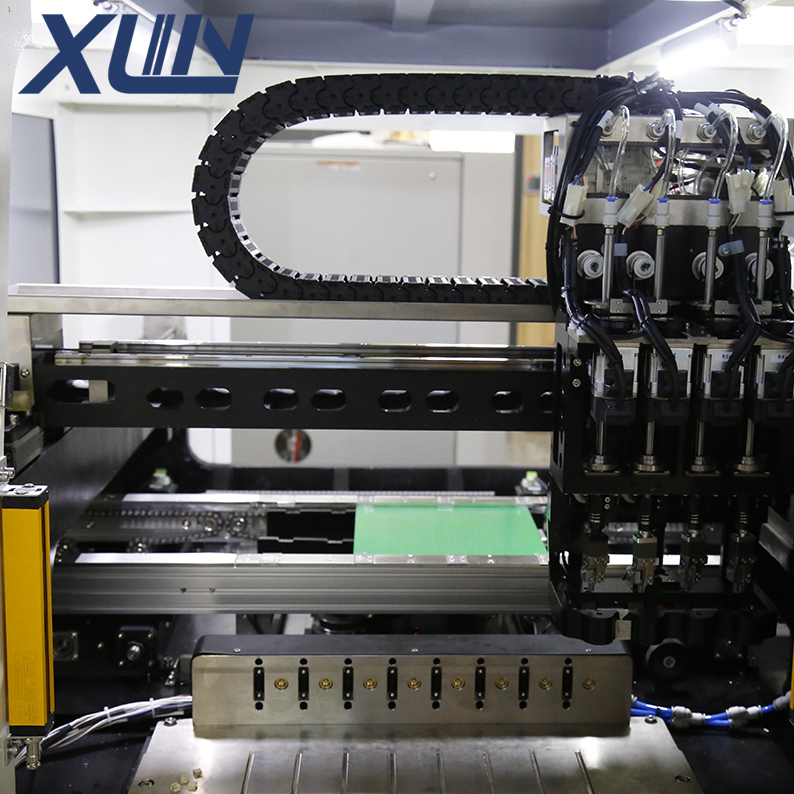

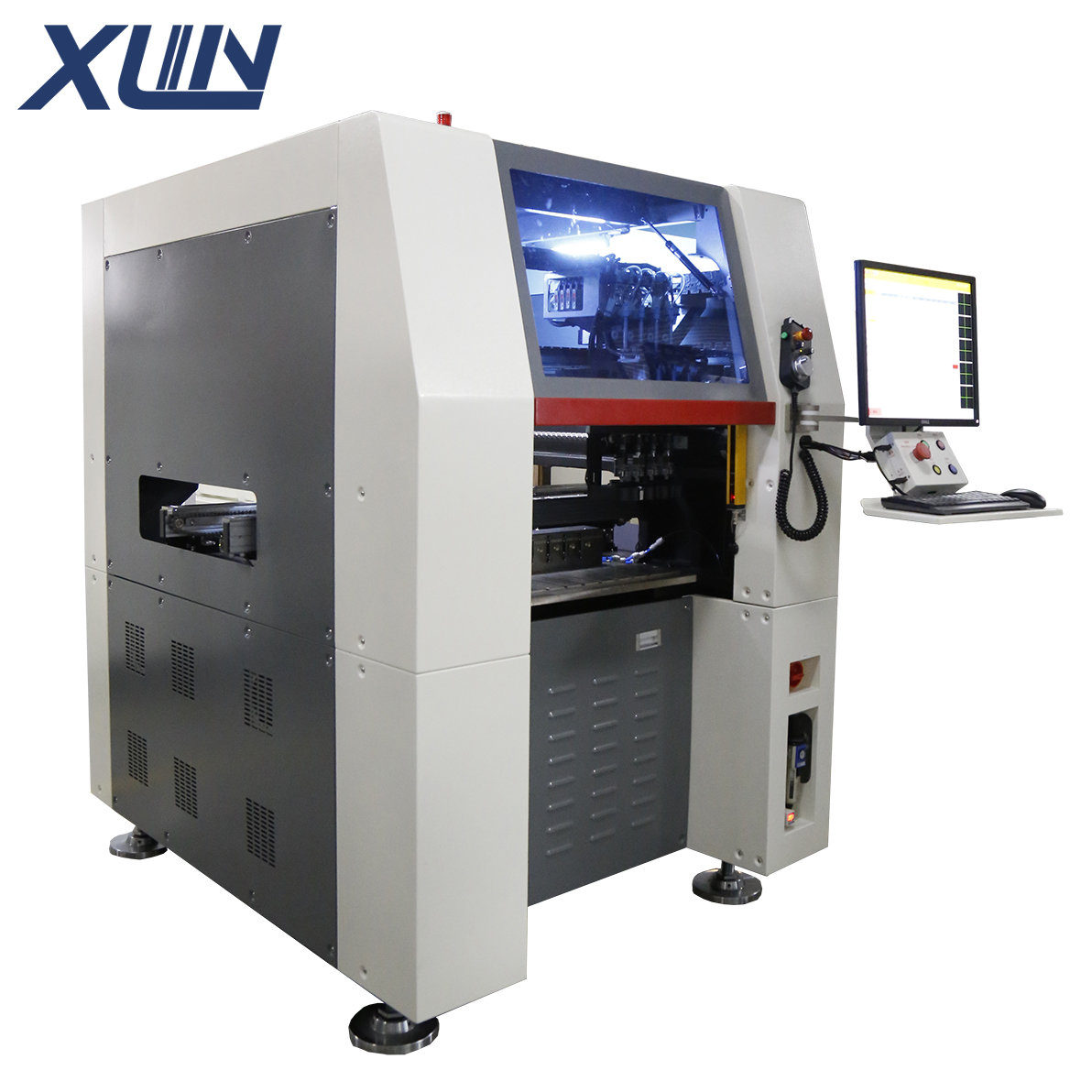

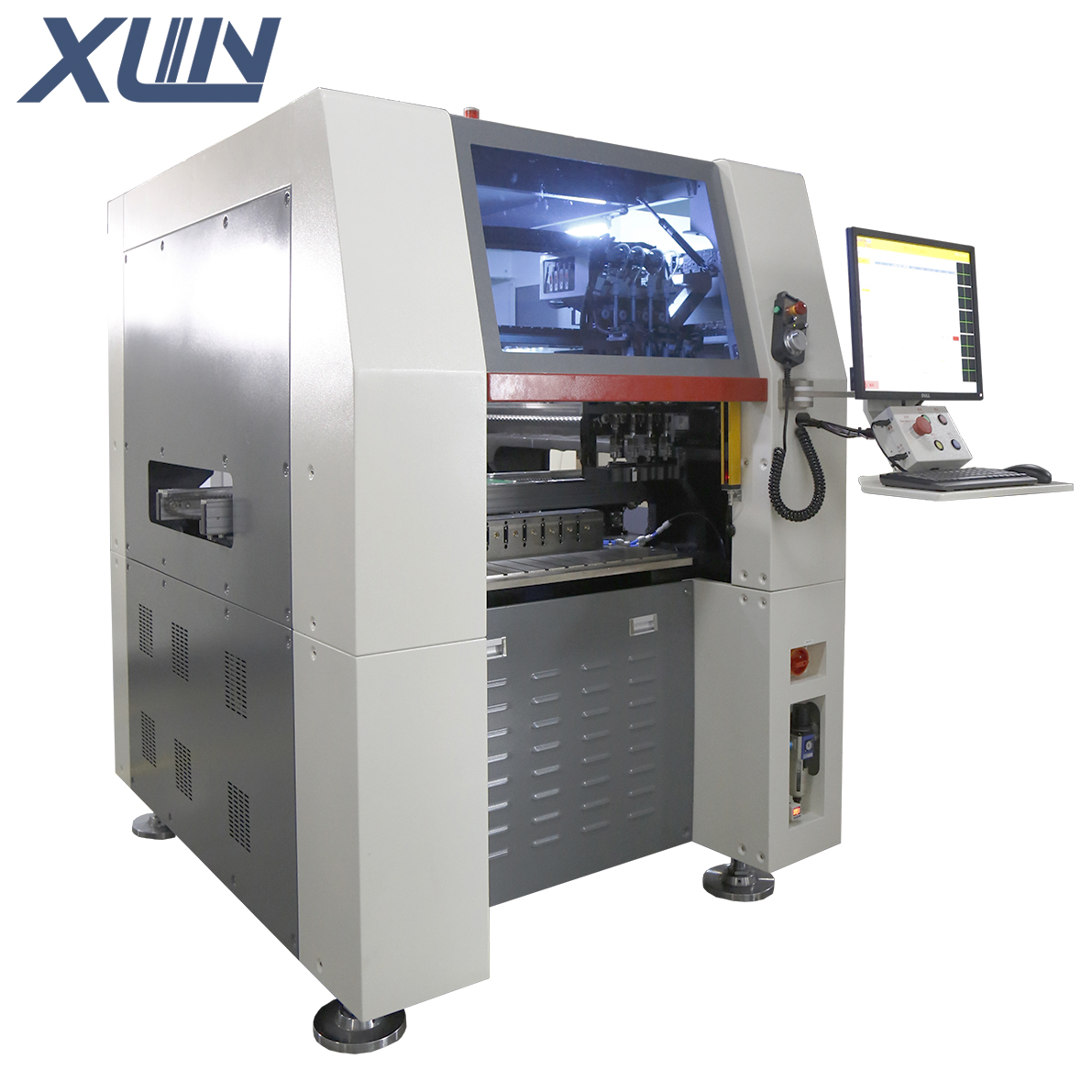

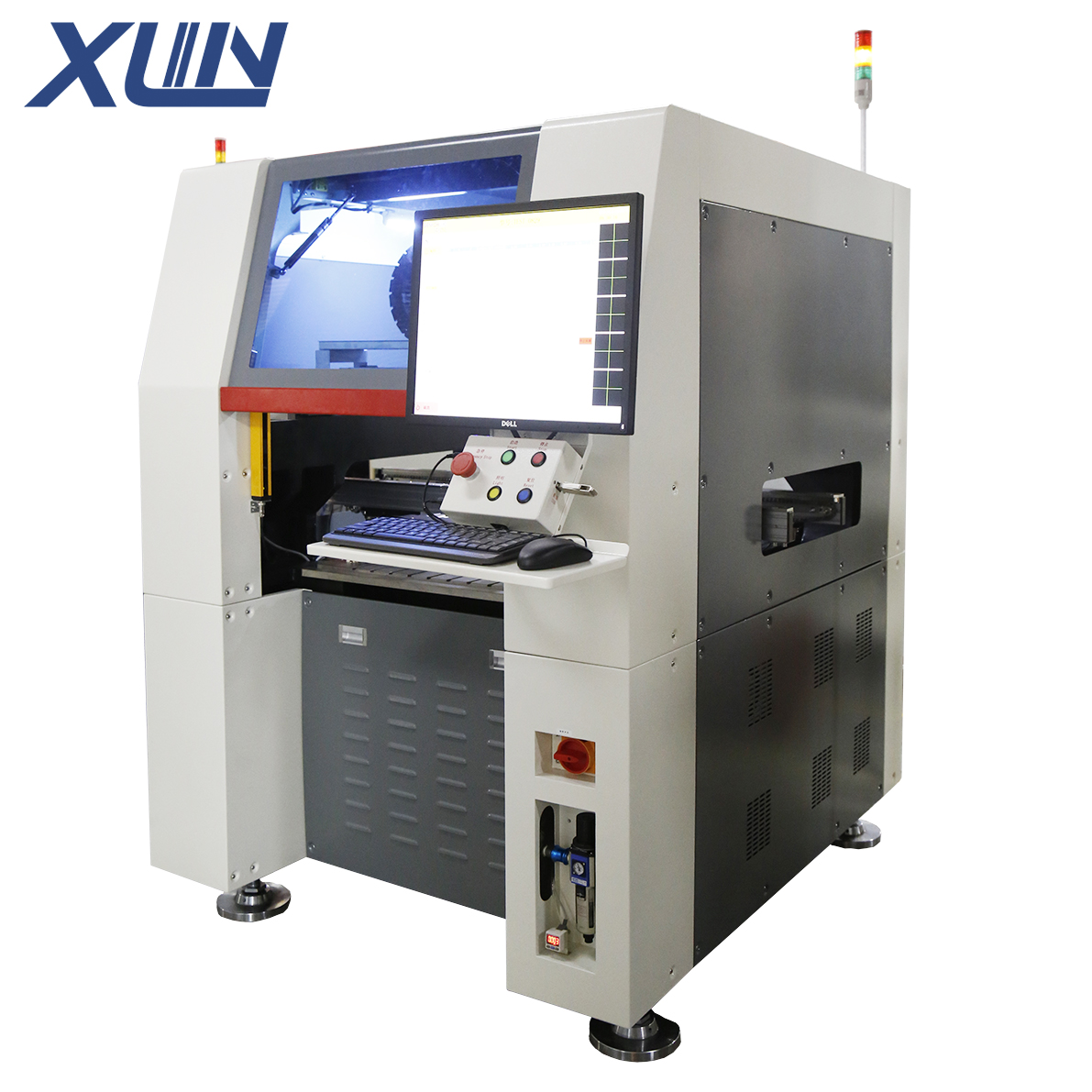

2022 Latest Design Smt Electronics Pick And Place Machine – Odd Form 4 Placement Head Plug-in Machine with 50mm Component Width for SMT Assembly – Xinling detail pictures

2022 Latest Design Smt Electronics Pick And Place Machine – Odd Form 4 Placement Head Plug-in Machine with 50mm Component Width for SMT Assembly – Xinling detail pictures

2022 Latest Design Smt Electronics Pick And Place Machine – Odd Form 4 Placement Head Plug-in Machine with 50mm Component Width for SMT Assembly – Xinling detail pictures

2022 Latest Design Smt Electronics Pick And Place Machine – Odd Form 4 Placement Head Plug-in Machine with 50mm Component Width for SMT Assembly – Xinling detail pictures

2022 Latest Design Smt Electronics Pick And Place Machine – Odd Form 4 Placement Head Plug-in Machine with 50mm Component Width for SMT Assembly – Xinling detail pictures
