Short Description:

3Di Series: Saki’s 3Di Series applies cutting edge technologies to improve production efficiency and enhance production quality across the entire assembly line.

3Xi Series/BF-X Series: Saki’s 3D-AXI (X-Ray) series adds significant inspection capability. The system utilizes Planar Computed Tomography (PCT) providing high precision CT imaging at high speed.

3Si Series: Saki’s 3D SPI identifies critical defects and assists with process improvement.

BF1 Series: Saki’s unique line scanning technology and coaxial overhead lighting enables high-speed accurate inspection.

Send email to us

Product Detail

Product Tags

3D-AOI

PCB Size mm (in.)	-	Single mode	-	Single mode	-
Dimensions	M Single Lane	M Dual Lane	L Single Lane	L Dual Lane	XL Single Lane

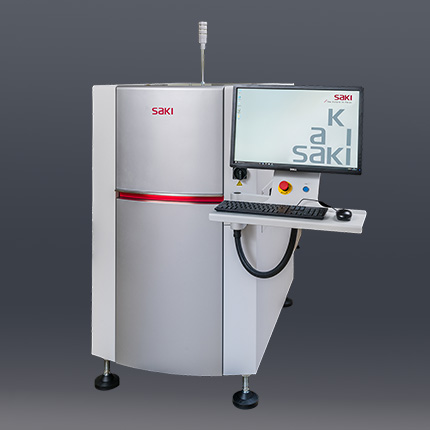

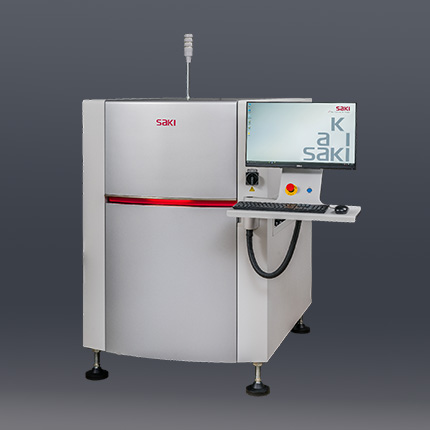

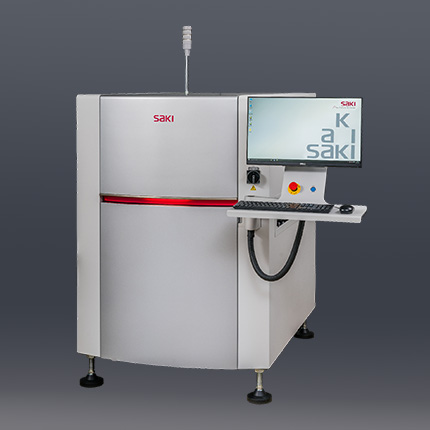

Model	3Di-MS2	3Di-MD2	3Di-LS2	3Di-LD2	3Di-ZS2
Model
Size (W) x (D) x (H) [Main body]mm (in.)	850 x 1430 x 1500 (33.46 x 56.30 x 59.06)		1040 x 1440 x 1500 (40.94 x 56.69 x 59.06)		1340 x 1440 x 1500 (52.75 x 56.69 x 59.06)
Weight	Approx. 850 Kg, 1873.93 lbs		Approx. 900 Kg, 1984.16 lbs
Electric Power Requirement	Single-phase ~ 200-240V +/-10％, 50/60Hz
Resolution	7μm, 12μm, 18μm				18μm
Air Requirement	0.5MPa, 5L/min (ANR)
	50 W x 60 L - 330 W x 330 L (1.97 Wx 2.36 L - 12.99 W x 12.99 L)	50 W x 60 L - 330 W x 330 L ( 1.97 W x 2.36L - 12.99 W x 12.99 L)	7µm camera head 50 W x 60 L - 330 W x 330 L (1.97 W x 2.36 L - 12.99 W x 12.99 L)	7µm camera head 50 W x 60 L - 330 W x 330 L (1.97 W x 2.36 L - 12.99 W x 12.99 L) 12/18 µm camera head 50 W x 60 L - 500 W x 510 L (1.97 W x 2.36 L - 19.68 W x 20.07 L)	50 W x 60 L - 686 W x 870 L (1.97 W x 2.36 L - 27.00 W x 34.25 L)
		Dual mode	-	Dual mode
		50 W x 60 L - 320 W x 330 L ( 1.97 W x 2.36L - 12.60 W x 12.99 L)	12/18 µm camera head 50 W x 60 L - 320 W x 330 L (1.97 W x 2.36 L - 12.60 W x 12.99 L)	7µm camera head 50 W x 60 L - 320 W x 330 L (1.97 W x 2.36 L - 12.60 W x 12.99 L) 12/18 µm camera head 50 W x 60 L - 320 W x 510 L (1.97 W x 2.36 L - 12.60 W x 20.07 L)
PCB Clearance	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.	Top: 40mm, 1.57 in. Bottom: 50mm, 1.96 in.	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.	Top: 40mm, 1.57 in. Bottom: 50mm, 1.96 in.	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.

3D-AXI

3Xi Series

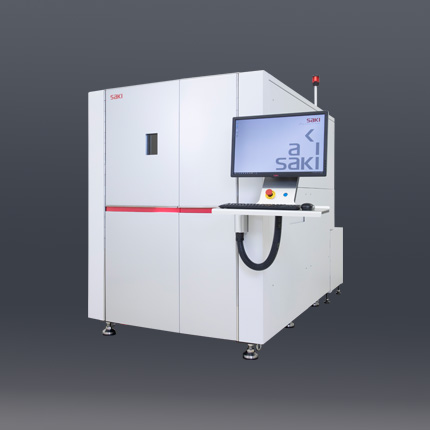

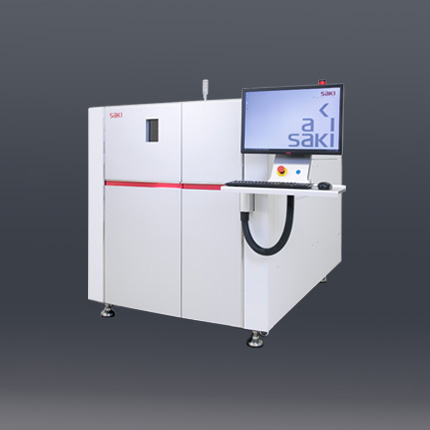

Model	3Xi-M110	3Xi-M200
Model
Size (W) x (D) x (H) [Main body]mm (in.)	1380 x 2150 x 1500 (54.34 x 84.65 x 59.06)	1400 x 2580 x 1862 (55.12 x 101.58 x 73.31)
Weight	Approx. 3100 Kg (6834.34 lbs)	Approx. 5100 Kg (11243.58 lbs)
Electric Power Requirement	Three-phase 200V +/ 10%, 50/60Hz 4.2 kVA With Cable 5m
Resolution	10μm-30μm	25μm-80μm
Tube	110kV 30W, Closed X-ray Source	200kV 30W, Open X-ray tube
Xray leakage	0.5μSv/h or less
Air Requirement	0.5MPa @ ≥ 20L/min (ANR)
Target PCB Size mm (in.)	50 W x 120 L - 360 W x 330 L (1.97 W x 4.73 L - 14.17 W x 12.99 L) 50 W x 120 L - 360 W x 510 L ※ (1.97 W x 4.72 L - 14.17 W x 20.07 L)※	50 W x 140 L - 360 W x 330 L (1.97 W x 5.52 L - 14.17 W x 12.99 L) 50 W x 140 L - 360 W x 510 L ※ (1.97 W x 5.52 L - 14.17 W x 20.07 L)※
PCB Clearance	Top: 60 mm (2.36 in.) Bottom: 40 mm (1.57 in.)

※with applying the two-step imaging option

BF-X Series

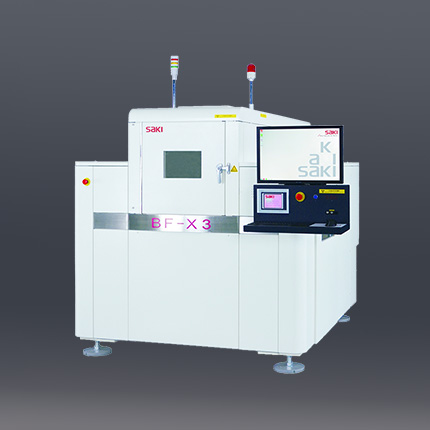

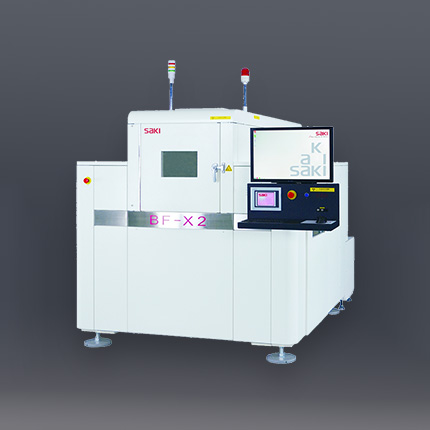

Model	BF-X2(130KV/200KV)		BF-X3
Model
Dimensions (W) x (D) x (H) [Main body]mm (in.)	1820 x 2680 x 1880 (71.65 x 105.52 x 74.01)	1836 x 2680 x 1880 (72.28 x 105.51 x 74.01)	1820 x 2250 x 1880 (71.65 x 88.58 x 74.01)
Weight	Approx. 5500 Kg (12125.43 lbs)	Approx. 6500 Kg (14330.05 lbs)	Approx. 5200 Kg (11464.04 lbs)
Electric Power Requirement	Three phase four wire system 400V Y connection 400V+/ 10%, 50/60Hz 7 kVA Cable 5 m
Resolution	9µm-29µm	21µm-68μm	13μm-30μm
Tube	130kV 30W, Open X-ray tube	200kV 30W, Open X-ray tube	130kV 16W, Closed X-ray Source
X-ray leakage	0.5μSv/h or less
Air Requirement	0.5MPa @ ≥ 60L/min (ANR)
Target PCB Size mm (in.)	50 W x 120 L - 460 W x 510 L (1.97 x 4.72 - 18.11 x 20.08)	50 W x 140 L - 460 W x 510 L (1.97 x 5.51 - 18.11 x 20.08)	50 W x 120 L - 460 W x 510 L (1.97 x 4.72 - 18.11 x 20.08)
PCB Clearance	Top: 40 mm (1.57 in.) Bottom: 40 mm (1.57 in.)

3D-SPI

PCB Size mm (in.)	-	Single mode	-	Single mode	-
Dimensions	M Single Lane	M Dual Lane	L Single Lane	L Dual Lane	XL Single Lane
Model	3Si-MS2	3Si-MD2	3Si-LS2	3Si-LD2	3Si-ZS2
Model
Size (W) x (D) x (H) [Main body]mm (in.)	850 x 1430 x 1500 (33.46 x 56.30 x 59.06)		1040 x 1440 x 1500 (40.94 x 56.69 x 59.06)		1340 x 1440 x 1500 (52.75 x 56.69 x 59.06)
Weight	Approx. 850 Kg, 1873.93 lbs		Approx. 900 Kg, 1984.16 lbs
Electric Power Requirement	Single-phase ~ 200-240V +/-10％, 50/60Hz
Resolution	7μm, 12μm, 18μm				18μm
Air Requirement	0.5MPa, 5L/min (ANR)
	50 W x 60 L - 330 W x 330 L (1.97 Wx 2.36 L - 12.99 W x 12.99 L)	50 W x 60 L - 330 W x 330 L ( 1.97 W x 2.36L - 12.99 W x 12.99 L)	7µm camera head 50 W x 60 L - 330 W x 330 L (1.97 W x 2.36 L - 12.99 W x 12.99 L)	7µm camera head 50 W x 60 L - 330 W x 330 L (1.97 W x 2.36 L - 12.99 W x 12.99 L) 12/18 µm camera head 50 W x 60 L - 500 W x 510 L (1.97 W x 2.36 L - 19.68 W x 20.07 L)	50 W x 60 L - 686 W x 870 L (1.97 W x 2.36 L - 27.00 W x 34.25 L)
		Dual mode	-	Dual mode
		50 W x 60 L - 320 W x 330 L ( 1.97 W x 2.36L - 12.60 W x 12.99 L)	12/18 µm camera head 50 W x 60 L - 500 W x 510 L (1.97 W x 2.36L - 19.68 W x 20.07 L)	7µm camera head 50 W x 60 L - 320 W x 330 L (1.97 W x 2.36 L - 12.60 W x 12.99 L) 12/18 µm camera head 50 W x 60 L - 320 W x 510 L (1.97 W x 2.36 L - 12.60 W x 20.07 L)
PCB Clearance	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.	Top: 40mm, 1.57 in. Bottom: 50mm, 1.96 in.	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.	Top: 40mm, 1.57 in. Bottom: 50mm, 1.96 in.	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.

2D-AOI

Inline High-speed AOI

Model	BF-Frontier II
Model
Dimensions (W) x (D) x (H) [Main body]mm (in.)	850 x 1340 x 1230 (33.5 x 52.8 x 48.4)
Weight	Approx. 450 Kg (992.1 lbs)
Electric Power Requirement	Single-phase ~ 100-120/200-240V +/-10％, 50/60Hz
Resolution	18μm
Air Requirement	0.5MPa, 5L/min (ANR)
Target PCB Size mm (in.)	50 W x 60 L - 460 W x 500 L (2 W x 2.4 L - 18 W x 20 L)
PCB Clearance	Top: 40mm (1.57 in.) Bottom: 40mm (1.57 in.)

2D Bottom-side Automated Optical Inspection Machine

Model	2Di-LU1
Model
Dimensions (W) x (D) x (H) [Main body]mm (in.)	1040 x 1440 x 1500 (40.94 x 56.69 x 59.06)
Weight	Approx. 750 Kg (1653.47 lbs)
Electric Power Requirement	Single-phase ~ 200-240V +/-10%, 50/60Hz, 700VA
Resolution	18μm
Air Requirement	0.5MPa, 5L/min (ANR)
Target PCB Size mm (in.)	Carrier 50 W x 60 L - 610 W x 610 L (1.97 W x 2.36 L – 24.02 W x 24.02 L)Inspection area (Scan) 50 W x 60 L - 460 W x 500 L (1.97 W x 2.36 L – 18.11 W x 19.69 L)
PCB Clearance	Top: 30mm (1.18 in.) Bottom: 30mm (1.18 in.)

Simultaneous two-sided inspection

Model	BF-Tristar II
Model
Dimensions (W) x (D) x (H) [Main body]mm (in.)	850 x 1295 x 1130 (33.5 x 51 x 45.5)
Weight	Approx. 450 Kg (992.1 lbs)
Electric Power Requirement	Single-phase ~ 100-120/200-240V +/-10％, 50/60Hz
Resolution	10μm
Air Requirement	0.5MPa, 5L/min (ANR)
Target PCB Size mm (in.)	50 W x 60 L - 250 W x 330 L (2 W x 2.4 L - 10 W x 13 L)
PCB Clearance	Top: 30mm (1.18 in.) Bottom: 30mm (1.18 in.)

Desktop model

Model	BF-Sirius	BF-Comet18
Model
Dimensions (W) x (D) x (H) [Main body]mm (in.)	800 x 1280 x 600 (31.5 x 50.4 x 23.6)	580 x 850 x 452 (22.8 x 33.5 x 17.8)
Weight	Approx. 175 Kg (385.8 lbs)	Approx. 80 Kg (176.4 lbs)
Electric Power Requirement	Single-phase ~ 100-120/200-240V +/-10％, 50/60Hz
Resolution	18μm
Air Requirement	-
Target PCB Size mm (in.)	50 W x 50 L - 460 W x 500 L (2 W x 2 L - 18 W x 20 L)	50 W x 50 L - 250 W x 330 L (2 W x 2 L - 10 W x 13 L)
PCB Clearance	Top: 40mm (1.57 in.) Bottom: 60mm (2.36 in.)
